Hand-held HD Telescopic Inspection Camera

Product Name Hand-held HD Telescopic Inspection Camera
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 500 sets / month
Dilivery Time Depend on quantity
Package Carton package

Product Description









Organizer Name: Shenzhen Wopson Electronics Co., Ltd.



Product parameters
Camera Control Box

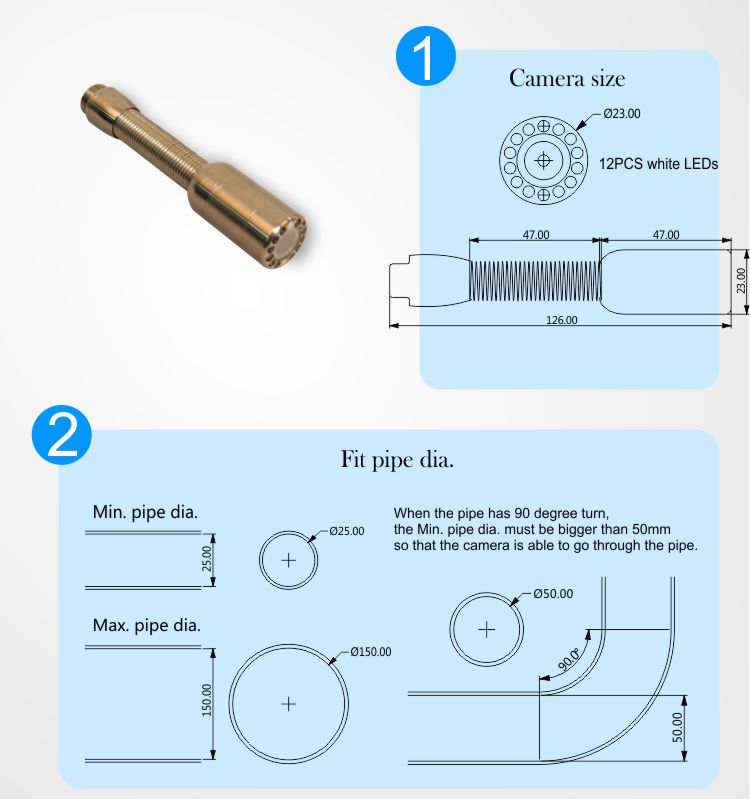

Camera Size: ø23 mm * 120 mm
Sensor size: 1/4 inches
Visual angle: 120°
LED Light Adjustable
Camera operating current: 100 ma
Camera Power: DC12
Camera Searchlight: 12PCS White LED
Total pixels: pal:710x576;
ntsc:720x480
Camera lens Material: sapphire glass
Camera shell material: Stainless steel power supply: 12V
LED adjustment
Battery display
Coil Lithium battery

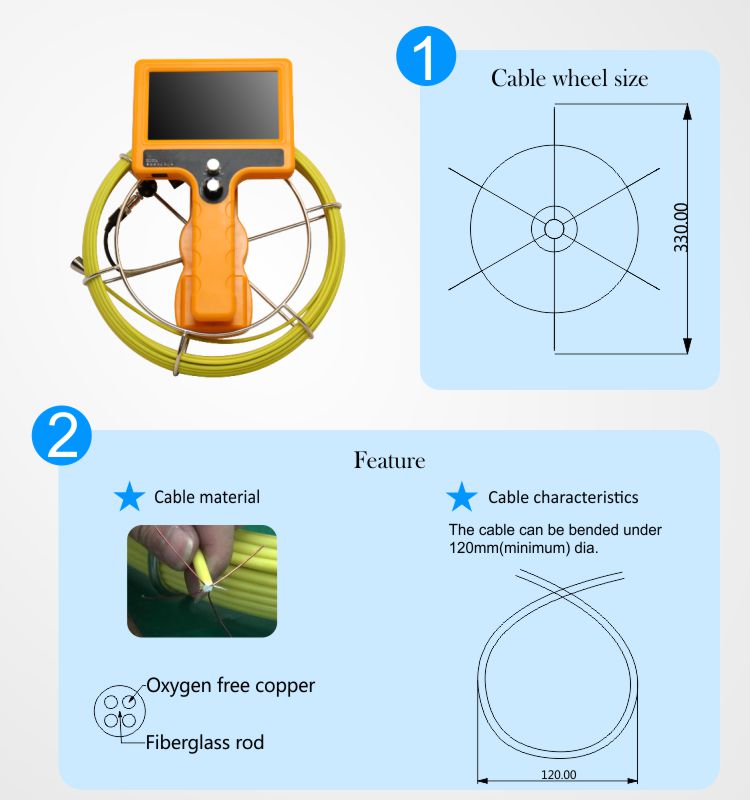

Cable size: 332 (D) *132 (H) mm
Wire Material: Fiberglass wire
Fiberglass length: 20 m (standard)
Fiberglass Diameter: ø5 mm
Glass Fiber Color: Yellow
Coil Material: Stainless steel total power: 14 Watts
Charge time: 5 hours
Protection Voltage: 9.5 Volts
12 kv 4400 Ma Lithium ion
Battery (18650)
Working time: ≧ 260 minutes
Monitor Headset

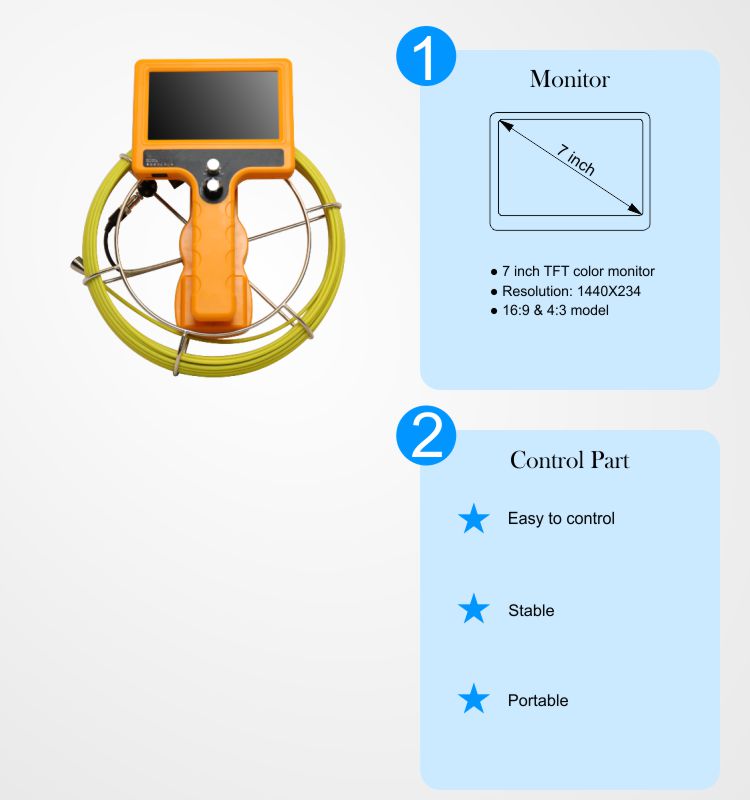

Display size: 7 inches
TFT color Display
Display total pixels: 1440*234
Monitor Power input: DC12
Original Ecological Language: English
Adjustable up, down, left, right
16:9 and 4:3 display modes
Built-in visor frequency response: 20-20khz
Sensitivity: -47db±2db
Output resistor: ≤2.2kω
Wire Length: 1m
Bracket charger
Bracket Dimensions
1. Bracket Size: ø40 mm
2. Bracket size: ø80 mm input voltage: ac100-240 Volts
Hz
Output: DC12 V/1000 ma
DC Plug Diameter: 2.1 mm




Product parameters
Black Aluminum Box




Size:
Long 480* width 415* height 200 mm
Material: Fireproof board + aluminum alloy
Empty box Weight: 3.4 kg
Specification parameter
Camera shell material: stainless steel
Camera lens Material: sapphire glass
Visual angle: 120°
Camera Searchlight: 12 High brightness white LED
Storage media: SD card (expandable to 32G)
Microphone Audio Recording
Stereo headphone output
Wear joint of Steel wheel
Operating temperature:-10-50 degrees Celsius,
Relative Humidity Max 95%
Storage temperature:-20-70 degrees Celsius,
Relative Humidity Max 95%
Packaging features


Product picture
