Microphone Audio Record Pipe Detector

Product Name Microphone Audio Record Pipe Detector
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 500 sets / month
Dilivery Time Depend on quantity
Package Carton package

Product Description

Unit Name: Shenzhen WOPSON Electronics Co., Ltd.
Device NamePipe detectorEquipment TypeWPS-914CDN-C23
Accessories parameter
Product parameters

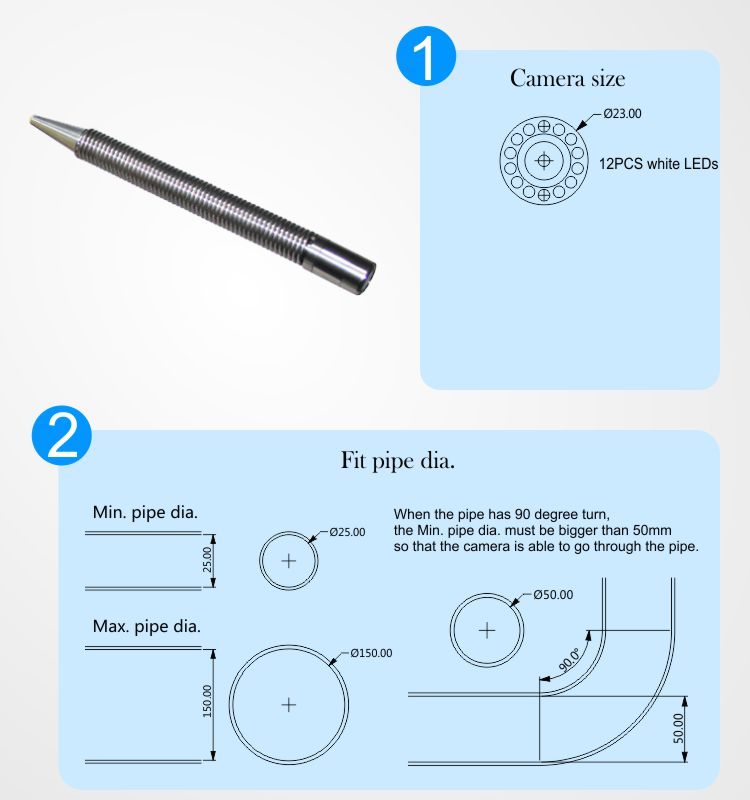

Camera size: ø23mmX250mm
Sensor size:1/4 inch
View angle:120°
Leds adjustable
Camera work current:100MA;
Camera power supply:DC 12V
Camera light:12PCS white LEDS
Total Pixels:PAL:720X576;
Camera glass material:sapphire glass
Camera shell material:stainless steelDVR power supply:12V
DVR work current:200MA
Storage medium:SD card(max 32G)
Digital clock and digital calendar
Battery level display
DVR Total Pixels:720X576 (D1)
Picture snap and movie record
Movie format:AVI
Microphone Audio record
Stereo earphone output

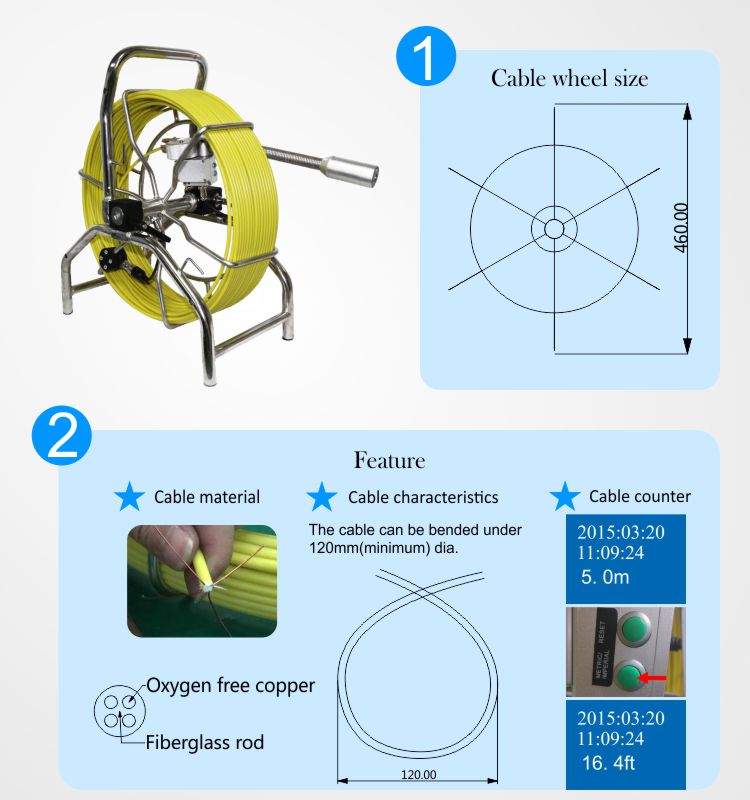

Cable size: ø460(L)X270(W)X560(H)
Wire material:fiberglass rod
Fiberglass length:60m(standard)
Fiberglass diameter: ø7mm
Cable wheel material:stainless steel
Meter counter
Fiberglass color:yellowTotal Power:14W
Charge time:5hours
Protective voltage:8.1V
12V  4000MAH  li-ion
Work time: ≧260minutes

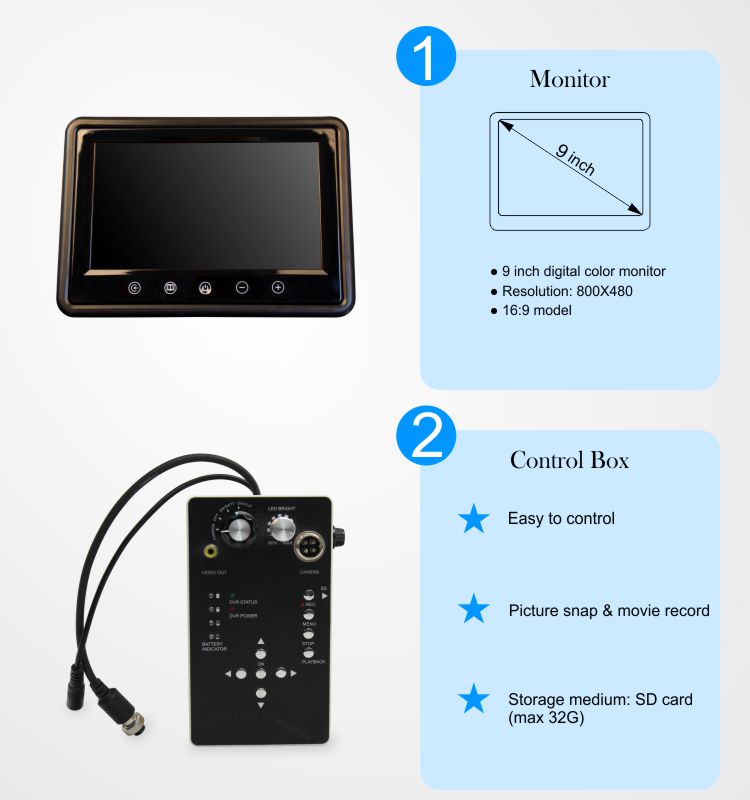

Monitor type:16:9  high definition digital LCD
Physical resolution:800*480  60Hz
Synchronization range: 30-80 KHz horizontal,55-75 Hz vertical
Dot pitch:0.1905(W)*0.1905(H)mm
Response time: 12ms
OSD:Remote control/Touch button control
Color: 16.7 million colors
Brightness: 350 cd/m2
Contrast Ratio: 400:1
Viewing angle: right and left 170 ° (85 ° / 85 °), up and down 160 ° (70 ° / 90 °)
Backlight lamp life: 50,000
Video Input Format: Analog RGB, Video Format: NTSC / PAL (auto)

SKIDS size
1. SKIDS1: ø40mm
2. SKIDS2: ø80mmInput:AC100-240V~50/60Hz
Output:DC 12V/1000MA
DC plug diameter:2.1mm
Accessories parameter

Material:engineering plastics
Empty case weight:5.9kg
Water proof
Product figure
