pipe inspection camera

  • Pipe Inspection Camera For Drilling

Pipe Inspection Camera For Drilling

Product Name Pipe Inspection Camera For Drilling
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 500 sets / month
Dilivery Time Depend on quantity
Package Carton package

Product Description









Model: WPS-15RXDSK-PT

Acceptable Customer Order
Category: Pipe endoscope, pipe detector, pipe detector, water pipe detector
Trademark: huaming
Display cartoon box size: 420*195*335mm Gross Weight: 16.7kgs/pc
Wire Wheel Cartoon Box size: 580*680*670mm (500 m) Gross weight: 108.2kgs/pc
Total Weight: 124.9kgs

Monitor Specification:
1.15 "Color digital screen
2. Resolution: (H) X (V)
3. Voltage: DC 12V
4. OSD language: English, Chinese, etc. (10 languages available)
5. Up, down, left, right adjustable
6.16:9 Display
7. Built-in Visor
8. Operating Temperature: -20°c-60°c
9. Portable Aluminum Box
10. Battery: 12V 4000MAH rechargeable Lithium battery or lead-acid battery, use time: 7 hours
11. Charger: Input ac90-240v, output: DC 12V 1000MA
12. Centering Device: 1 skids1:φ60mm 2. skids2:φ80mm

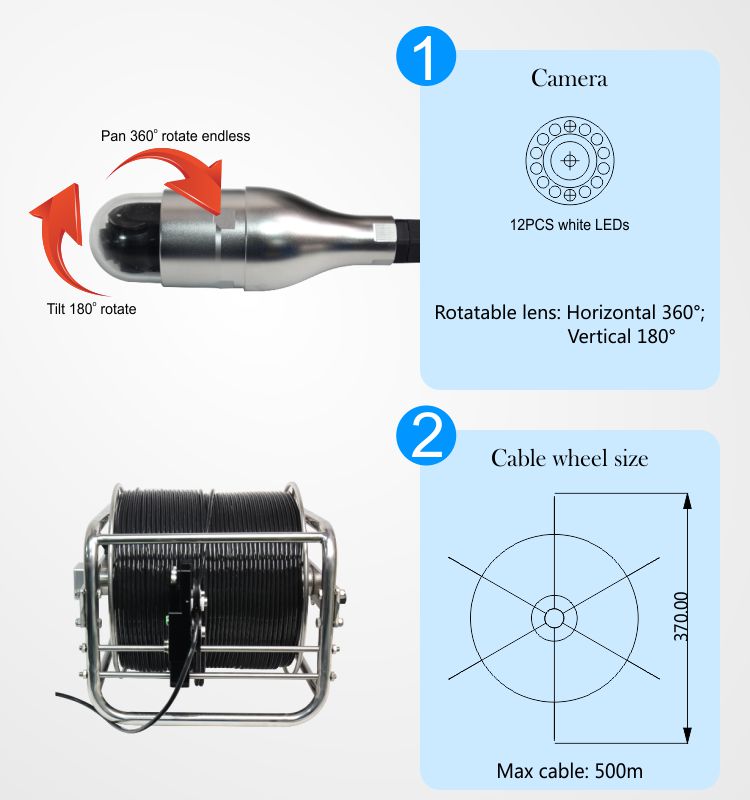

Camera Specifications:
1. Camera Size: 195mm (L) xφ75mm (diameter)
(φ45mm, 55mm optional)
2. Camera Material: High strength stainless steel 304
3. Camera lens Material: tempered glass
4. Sensor: 1/3-inch CCD or CMOS
5. Sharpness: 700 Lines
6. Camera angle: 130° lens, 360° rotation, 180° up and down adjustable
7. Focus Adjustable
8. Automatic scanning function
9. Adjustable speed in arbitrary mode
10. Arrow keys for automatic tracking
11. Can be preset position observation, recording live conveniently
12. Waterproof Grade: IP68
13. Fill Light: 11 White light or infrared light
14. Camera Cable Length: 60 m/120 m
15. Camera Operating Current: 150MA
16. Camera Voltage: DC 12V
17. Working environment: In Pipe, in drilling
18. Operating Temperature: -10°c-50°c

Winding Wheel
1. Line Wheel Size: 460 (L) x 460 (W) x 460 (H) mm
2. Line Material: Coaxial cable
3. Line length: 300 m
4. Fiberglass Wire Diameter: 5MM
5. Fiberglass Line Color: Black


VCR Specifications:
1. Supply Voltage: 12V
2. Working current: 200MA
3. Storage capacity: SD Card (Maximum support: 64G)
4. Electronic clock and digital calendar
5. Video images: 720X576 (D1)
6. Capturing and recording function
7. Video format: AVI
