Stainless Steel Pipe Detector

Product Name Stainless Steel Pipe Detector
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 500 sets / month
Dilivery Time Depend on quantity
Package Carton package

Product Description









Unit Name: Shenzhen Wopson Electronices Co.,Ltd

Device Name Pipe detector Equipment Type WPS-910DN5
Waterproof IP68
Accessories parameter
Product parameters

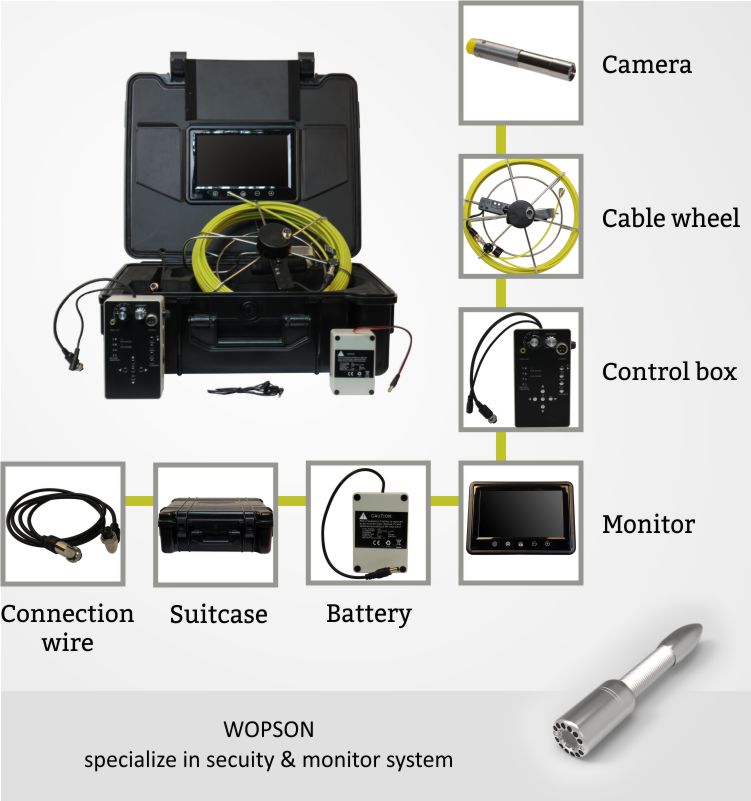

CAMERA CONTROL BOX

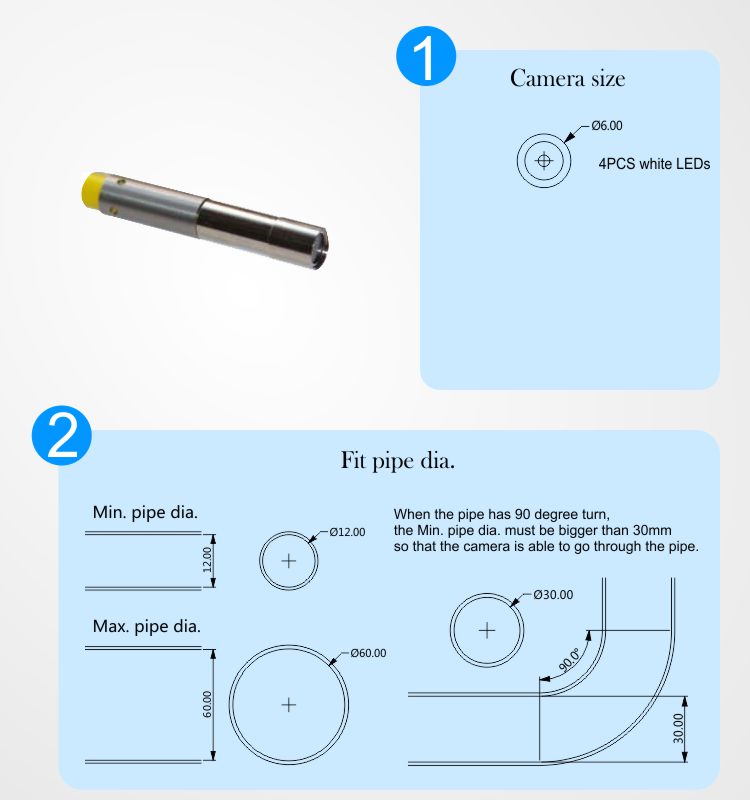

Camera size: ø6mm
Sensor size:1/12 inch
View angle:60°
Camerawork current:100MA
Camera power supply:DC 3.3V
Camera light:4PCS white LEDS
Total Pixels:PAL:720X576;
NTSC:720X480
Camera glass material:sapphire glass
Camera shell material:stainless steel DVR power supply:12V
DVR work current:200MA
Storage medium:SD card(max 32G)
Digital clock and digital calendar
Battery level display
DVR Total Pixels:720X576 (D1)
Picture snap and movie record
Movie format:AVI
Microphone Audio record
Stereo earphone output

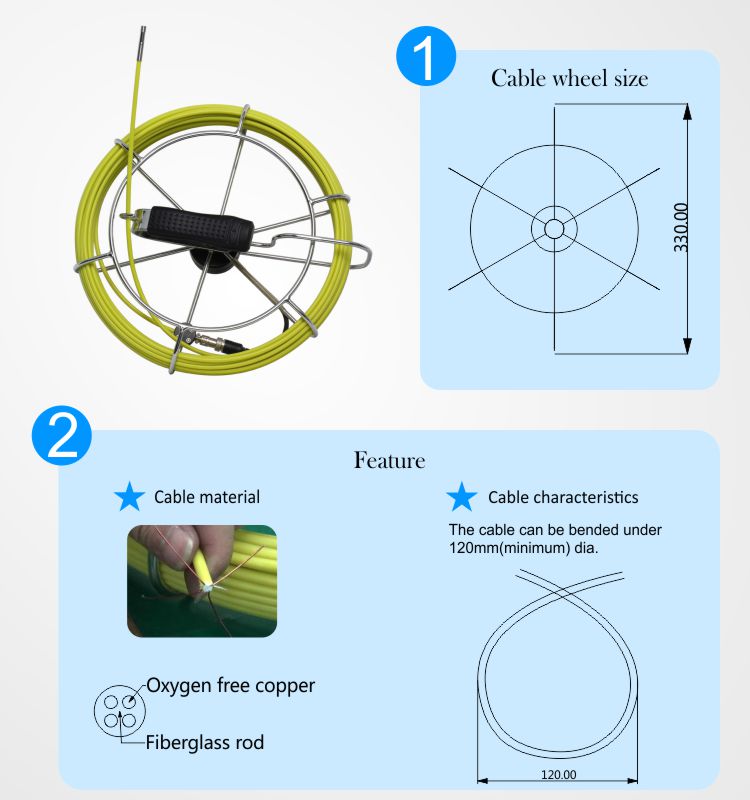

CABLE WHEEL LI-ION BATTERY
Cable size: ø320mmX110(h)
Wire material:fiberglass rod
Fiberglass length:20m(standard)
Fiberglass diameter: ø4.8mm
Fiberglass color:yellow Total Power:14W
Charge time:5hours
Protective voltage:8.1V
12V  4000MAH  li-ion
battery(18650)
Work time: ≧260minutes

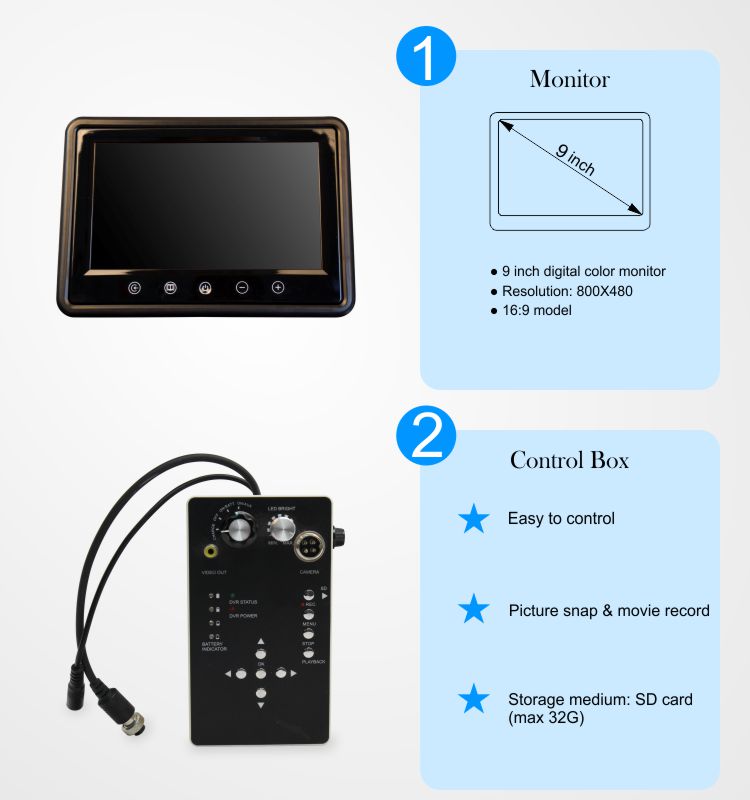

MONITOR
Monitor type:16:9  high definition digital LCD
Physical resolution:800*480  60Hz
Synchronization range: 30-80 KHz horizontal,55-75 Hz vertical
Dot pitch:0.1905(W)*0.1905(H)mm
Response time: 12ms
OSD:Remote control/Touch button control
Color: 16.7 million colors
Brightness: 350 cd/m2
Contrast Ratio: 400:1
Viewing angle: right and left 170 ° (85 ° / 85 °), up and down 160 ° (70 ° / 90 °)
Backlight lamp life: 50,000
Video Input Format: Analog RGB, Video Format: NTSC / PAL (auto)
SKID CHARGER
SKIDS size
1. SKIDS1: ø12mm Input:AC100-240V~50/60Hz
Output:DC 12V/1000MA
DC plug diameter:2.1mm
Accessories parameter
CASE




Size:L520XW435XH200mm
Material:engineering plastics
Empty case weight:5.9kg
Wate proof
Color:orange/green/black
SPECIFICATION
Camera shell material:Stainless steel
Camera galss material:Sapphire glass
View angle:120°
Camera light:12pcs high light white LEDS
Storage medium:SD card(max 32G)
Microphone Audio record
Stereo earphone output
Wire wheel wearable connector
Operating temperature:-10 to 50 defrees Celsius,
                  RH 95% maximum
Storage temperature:-20 to 70 degrees Celsius,
                  RH 95% maximum
Packing features

Product figure
