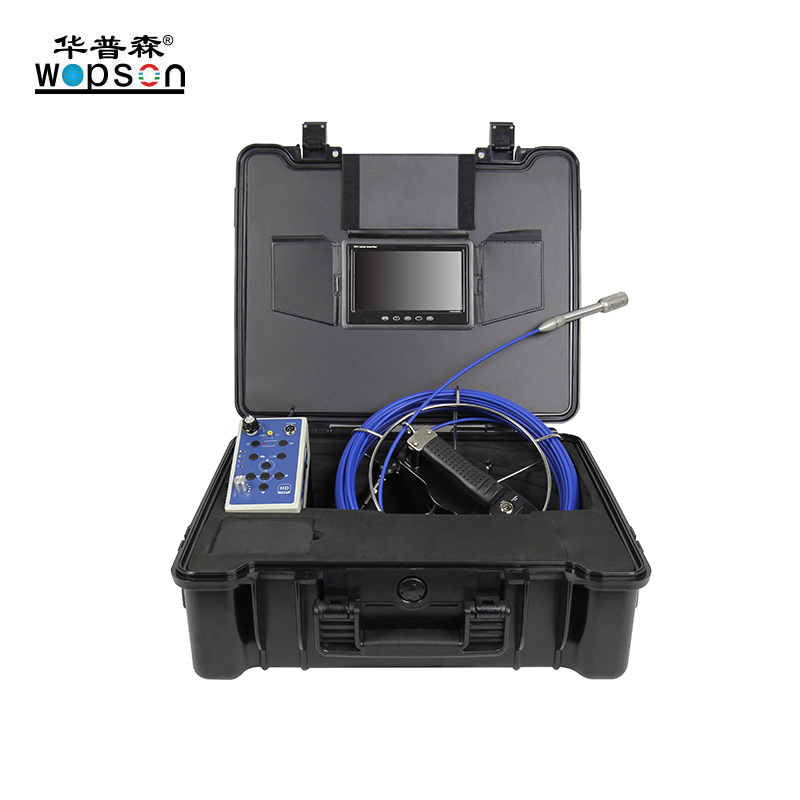

H1 HD high definition Pipeline detection with 512 hz sonde transmitter

Product Name H1 HD high definition Pipeline detection with 512 hz sonde transmitter
Mini Order 2 sets
FOB Price
Paymnet T/T
Supply Ability 500 PC/month
Dilivery Time 5-7 work days
Package Carton

Product Description





It is widely used in pipes, drains, sewers, pipes, chimneys, machinery and building inspections.



Resolution:720*1280
One-touching video/audio recording and image capture
Supporting max 256 SD card or USB disk
7-hour battery life
Supporting record pause and image capture while recording
Optional removable camera head with 512Hz transmitter

Camera & skid:

Camera size: ø23mm*144mm

Video resolution: 720*1280

Leds: 12pcs

View angle: 90°

Waterproof: IP68

Skids: 40/80mm

Suitable pipe diameter: 60-150mm

Control box:

Storage medium:

8G SD card (max 256G) &USB stick

DVR total pixels: 720*1280

Movie format:AVI

Charger time: 5 hours

Running time: ≥7 hours

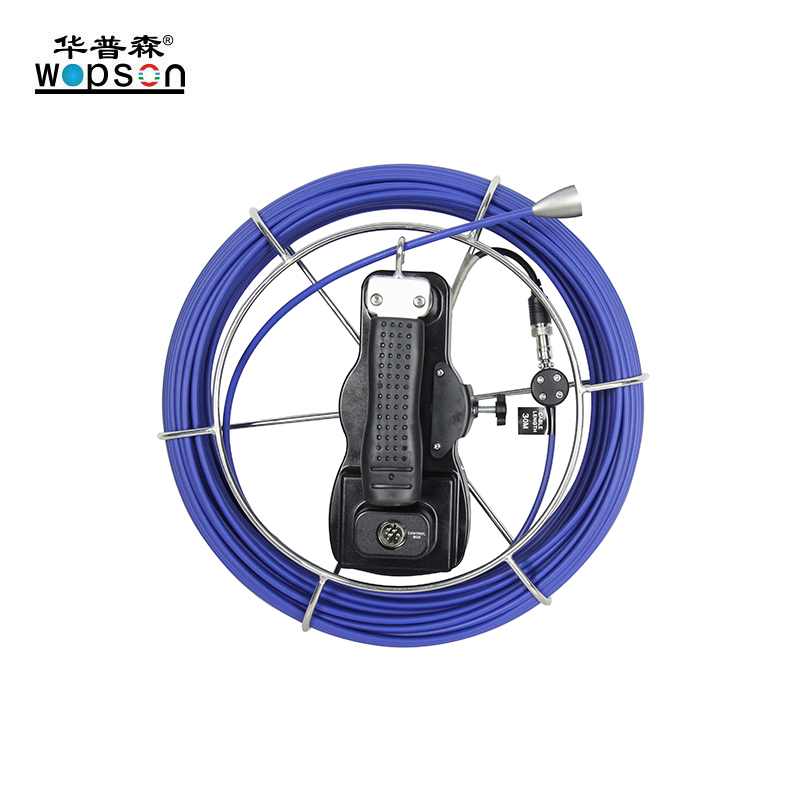

Cable reel:

Cable size: ø330*110mm

 Cable length: 20m

Cable diameter: ø5mm

Max length: 50m

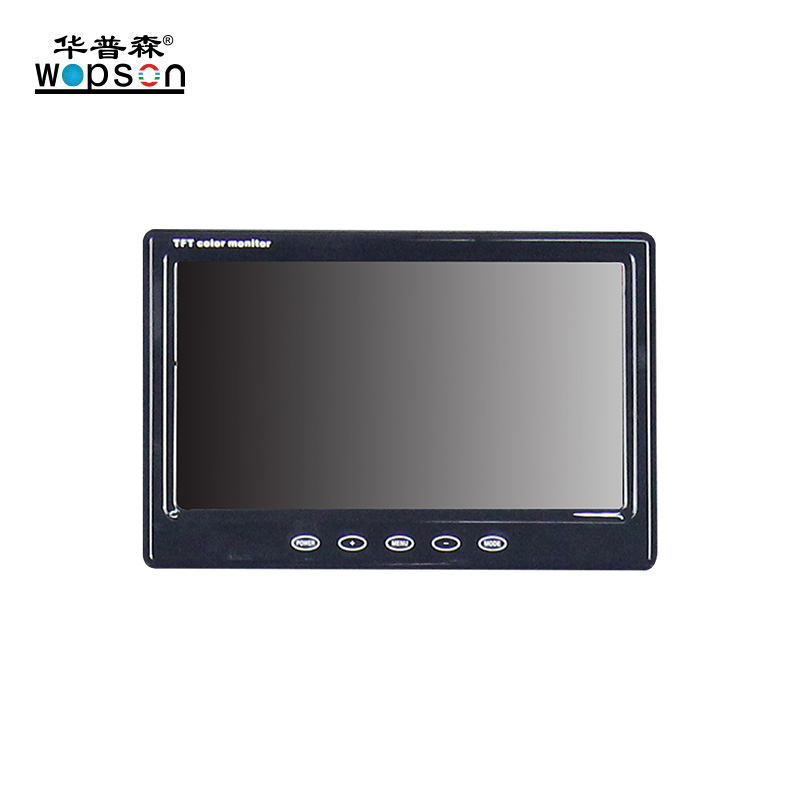

Display screen:

Screen size: 7 inch TFT color

 Screen pixels: 800*480

Case:

Size: L520*W435*H200mm

Case material:

Engineering plastic

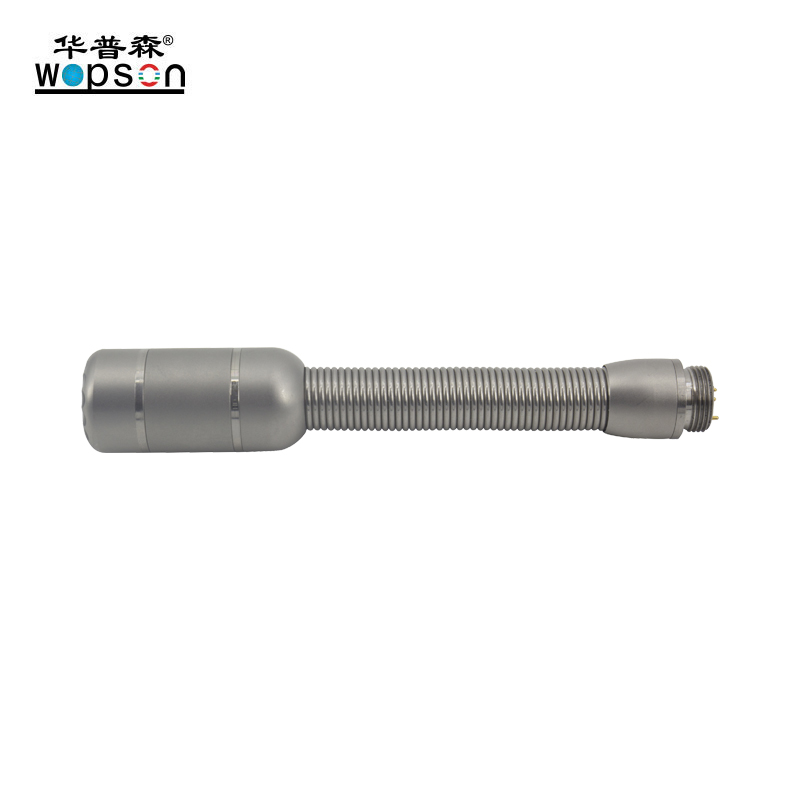

Camera size: ø23mm*240mm

Power Supply:DC12V

Work Current:100MA

Video resolution: 720*1280

Sensor Size: 1/3 inch

Leds: 12pcs

View angle: 90°

Transmitter: built-in512Hz

 Shell Material: 304#Stainless Steel
