Pipe Sewer Drain inspection camera

  • Pipe Sewer Drain Inspection Camera

Pipe Sewer Drain Inspection Camera

Product Name Pipe Sewer Drain Inspection Camera
Mini Order 1 set
FOB Price
Paymnet T/T, Paypal, WestUnion
Supply Ability 500 sets / month
Dilivery Time Depend on quantity
Package Carton package

Product Description

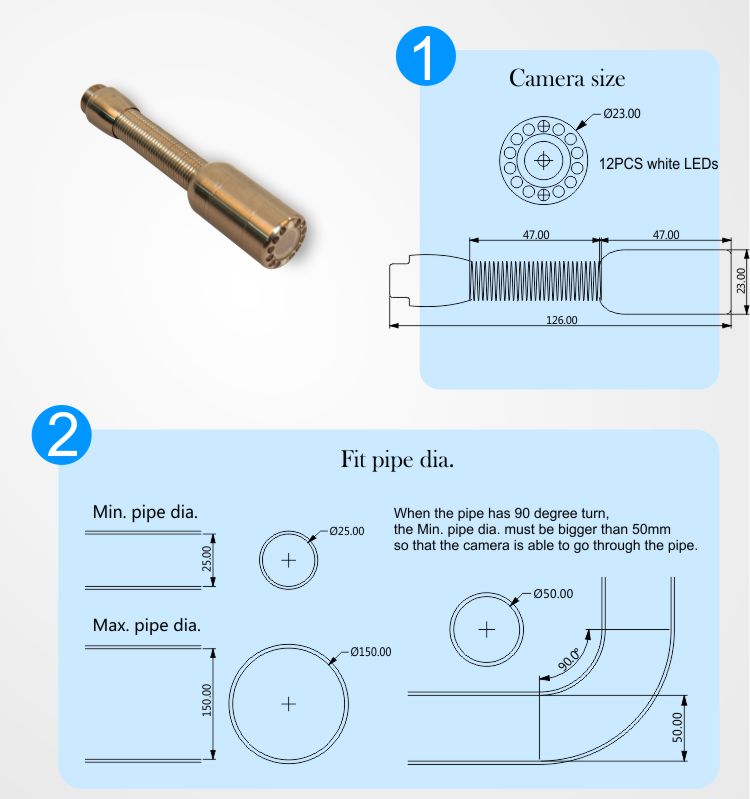

Camera

Control box
Camera Size: ø23mmx141mm
Sensor size: 1/4 inches
Visual angle: 120°
LED Light Adjustable
Camera operating current: 100M;
Camera Power: dc12v
Camera led: 12PCS White LED
totalpixels:pal:710x576;
ntsc:720x480
Camera Glass Material: sapphire glass
Camera shell material: stainless steel
Power supply: Lithium battery V
LED Display
Battery display

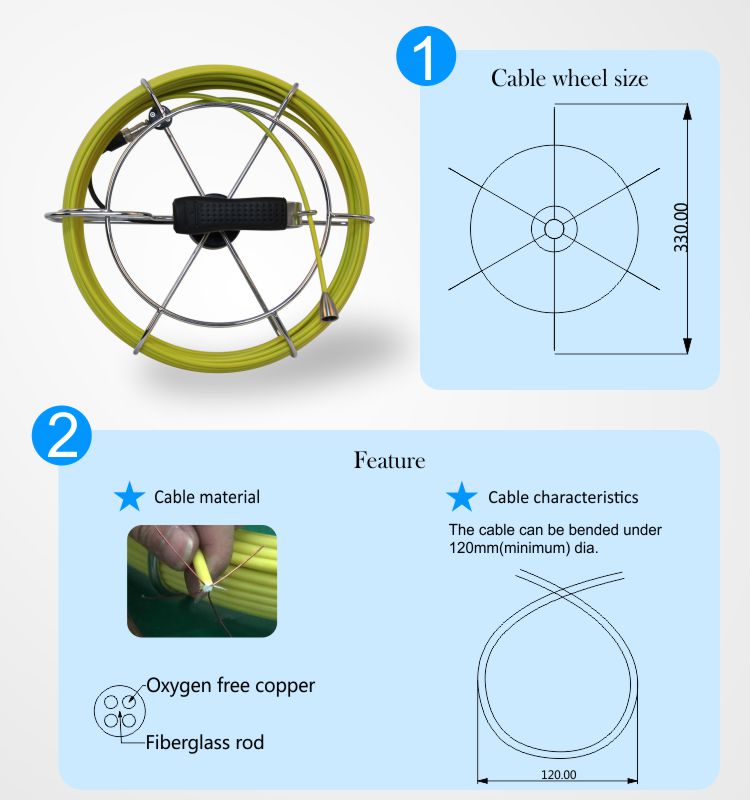

Coil
Cable size: ø320mmx110 (H)
Wire Material: Fiberglass rod
Fiberglass length: 20 m (standard)
Fiberglass Diameter: ø4.8mm
Glass Fiber Color: Yellow
Total Power: 14W
Charge time: 5 hours
Protection Voltage: 8.1V
12v4000mah Lithium Ion
Battery (18650)
Working time: ≧ 260 minutes


Monitor
Charger
Display size: 7-inch TFT color display
Total pixels Monitored: 1440x234
Monitor Power: dc12v
OSD Language: English
Screen: Up, down, left, right adjustable
16:9 and 4:3 mode
Sunshade cover

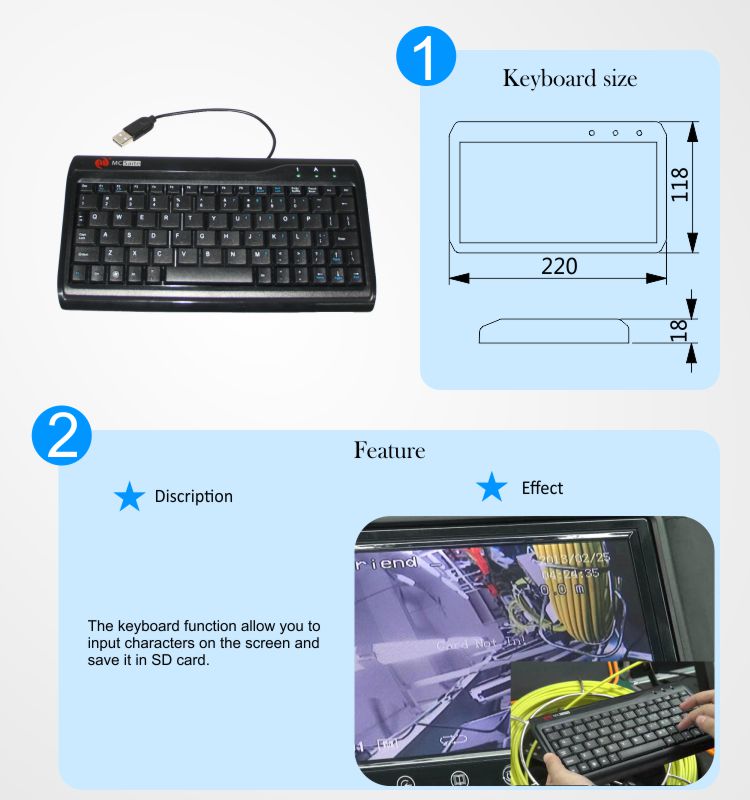

Keyboard
Keyboard Size: 220x110x15mm
Language: English
Keyboard interface: USB
Text editing: PAL 28letter 15 Line
NTSC 26 Letters 12 Lines
Page: 4 page
Input voltage: ac100-240v50/60hz
Output: dc12v/1000ma
DC Plug Diameter: 2.1 mm
Stent
Bracket Dimensions
1. Bracket 1:ø40mm
2. Bracket 2:ø80mm
Engineering box
Size: l520xw435xh200mm
Material: Fireproof board + aluminum alloy
Empty box Weight: 3.4 kg


Specifications
Camera shell material: stainless steel
Camera GALSS material: sapphire glass
Visual angle: 120°
Camera light Source: 12 High brightness white light LED
Storage media: SD card (max 32G)
Microphone Audio Recording
Stereo headphone output
Wear joint of Steel wheel
Operating temperature: -10〜50 degrees Celsius defrees,
Relative Humidity Max 95%
Storage temperature:-20-70 degrees Celsius,
Relative Humidity Max 95%
